Specifying Fibre Optic Joint Closures: A Practical Guide to the Joint

Every fibre network is a series of continuous glass paths, and everywhere two cables meet, the join has to be protected. That protection is the joint closure: the sealed enclosure that holds the splices, organises the fibres, and keeps water, dust and handling away from the most delicate point in the whole network. It sits in a chamber, on a pole, or directly buried in the ground, and it is expected to keep a perfect seal around a bundle of hair-thin fibres for the entire life of the route.

Get the closure right and a joint is invisible for twenty years. Get it wrong, an inadequate seal, a closure re-entered badly, or one with no headroom left for the next fibre, and it becomes a recurring fault, a source of water ingress, and a repeated visit to a location that should have been left alone. Closures rarely get the attention cable and hardware receive, but they concentrate more long-term risk per unit than almost anything else in the build, because a fault inside a sealed joint is both hard to find and disruptive to fix. This guide is written for the people specifying and buying them. It covers what a joint closure actually does, the dome and inline formats and when to use each, the seal and capacity specifications that matter, and what to check before a closure goes in.

What a joint closure does

A fibre optic joint closure has three jobs, and a good one does all three without compromise.

The first is to seal. The closure keeps water and dust out of the splice environment, which matters because bare fused fibre and its splice protectors do not tolerate moisture, contamination or movement. On a buried or below-ground joint this seal is doing real work every day against standing water and ground moisture.

The second is to organise. Inside, splice trays hold and route the fibres so that each splice is protected, supported at a safe bend radius, and can be traced and worked on later. This fibre management is what separates a closure that can be maintained from a bird’s nest that cannot.

The third is to allow safe re-entry. A network is not spliced once and forgotten. Fibres are added, moved and repaired over the closure’s life, and a well-designed closure can be reopened, worked on, and resealed without disturbing the fibres already live inside it. That re-enterability is what keeps a single closure serving a route through years of change rather than being cut out and replaced.

The number that matters: seal integrity

If one specification decides whether a closure performs or fails, it is the seal, expressed as an IP rating. A joint closure is only as good as its ability to keep water out, because water at a splice is one of the most common and most damaging causes of buried and aerial fibre faults, and it is one of the hardest to trace.

A quality closure for external use is sealed to IP68, the rating for sustained protection against dust and water immersion, and the best will state the depth and duration behind that figure, for example sealed to IP68 at five metres. That is what lets a closure be directly buried or sit in a flooded chamber and keep the splice environment dry regardless. The seal is not only about the shell: it is about how cables enter it. Mechanical sealing glands, which can be assembled onto the cable away from the joint and then plugged into the base, give a controlled, repeatable seal at every cable entry, and multi-way glands let several small cables share a port without compromising it. Where heat-shrink entry is used, the seal is made with adhesive-lined sleeves. Either way, the entry seal is where a closure most often lets water in, so it deserves as much attention as the closure body.

Seal integrity is the specification to confirm first, because everything else the closure does depends on it staying dry inside.

Dome and inline: choosing the format

Joint closures come in two broad formats, and the choice follows the application.

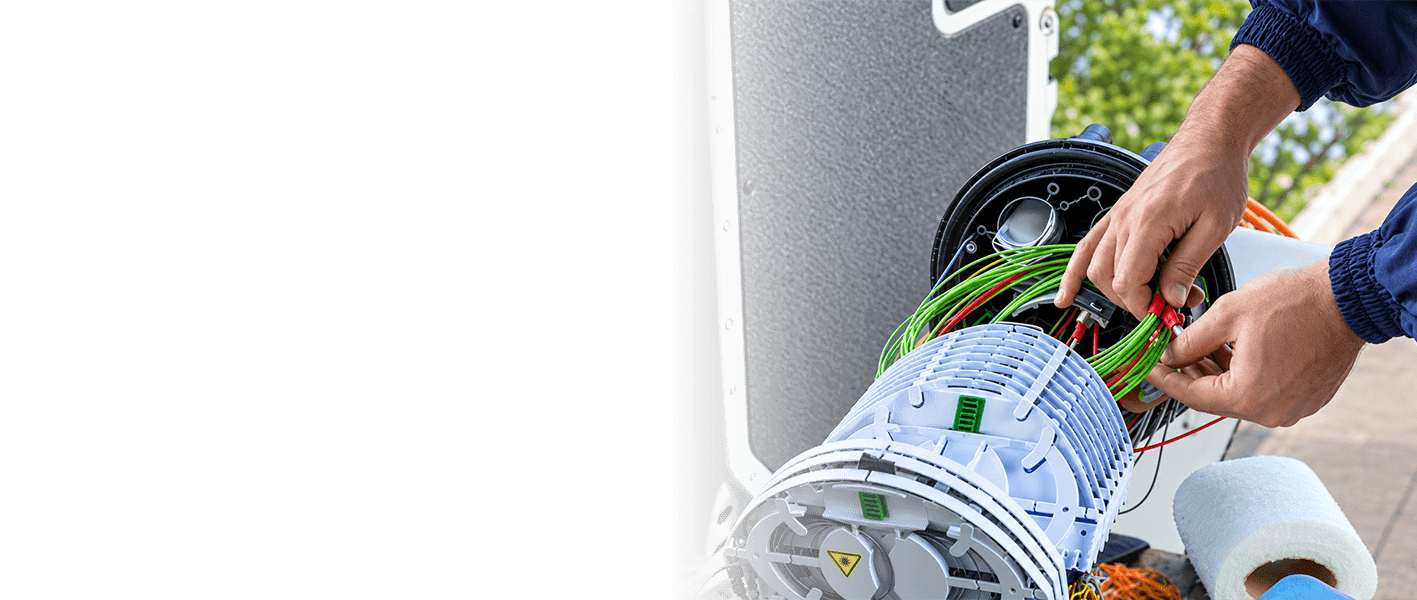

A dome closure has all its cable entries at one end, on a single base, with a domed cover over the splice trays. Because cables come and go from the same end, a dome suits branch and spur joints, in-line splices, and any position where the route can be arranged to enter from one side. Dome closures are compact, robust, and well suited to direct burial and chamber use. A small dome closure, for example, might carry four cable entry ports and a single splice cassette for up to twenty-four splices, sealed to IP68 and UV-resistant for a long service life, which is exactly right for a track or branch joint.

An inline or through-joint format takes cables at both ends and suits mid-span and distribution joints on a straight route, where the through cable passes and fibres are broken out along the way. Larger multi-function joints move into this territory, with multiple circular ports plus an oval port for the through cable, integrated loop storage for slack at mid-span, and the tray capacity to act as a distribution point rather than a simple splice.

The practical point is to match the format to the joint’s role on the route. A branch in a footway chamber and a mid-span distribution joint on a trunk route are different problems, and the closure format should reflect that rather than defaulting to one size for everything.

Capacity, trays and splitters

Capacity is where a closure specification quietly decides how long a joint stays useful, and it is worth reading beyond the headline fibre count.

Closures scale by the number and type of splice trays they hold. A compact closure might take twelve single-element trays at twelve splices each for a maximum of 144 fibres, while a large closure with two vertical tray stacks can reach 576 fibres using twelve-fibre single-element trays. What matters is not just the maximum but the headroom you leave: specifying a closure that is full on the first splice leaves nowhere to add the next customer or the next feed, and the cost of swapping a closure later dwarfs the cost of a size up now.

Two design features earn their keep here. Hinged splice trays let an engineer lift a tray and work on it without disturbing the live fibres in the trays beneath, which is what makes maintenance safe on a working joint. And the ability to mount optical splitters inside the closure, from small 1x2 splitters up to 2x64 in a large joint, lets the same enclosure serve as a PON splitting point rather than a plain splice, which is central to efficient FTTP architecture. Loop storage for slack cable, a defined minimum fibre bend radius, typically 30mm, and clear tube-to-tray routing complete the picture of a closure that can actually be worked in.

Mounting, environment and re-entry

A closure has to survive where it is put, and be workable when someone comes back to it.

The best closures are rated for direct burial as well as chamber, wall and pole mounting, with a robust housing, typically a glass-filled polypropylene body, and UV resistance tested to a recognised standard for above-ground use. A wide operating temperature range, from well below freezing to high summer heat in an exposed cabinet, keeps the seal and the housing stable across UK conditions. Mounting brackets suited to the location, and joint support kits for suspending closures in underground chambers, are part of specifying the closure rather than an afterthought.

Re-entry deserves a specific mention because it is where cheaper closures cost the most over time. A closure that can be reopened cleanly, worked on without disturbing live fibres, and resealed to its original rating is one that serves a route for its whole life. One that has to be cut off and replaced every time a fibre is added generates avoidable cost and risk at every visit. When comparing closures, how they re-enter and reseal matters as much as how they seal the first time.

A specifier’s checklist for joint closures

A handful of checks cover most closure decisions:

• Confirm the seal rating for the environment, IP68 for external and buried use, and check the stated depth and duration behind it.

• Match the format to the joint: dome for branch, spur and in-line; through-joint for mid-span and distribution.

• Size the tray and fibre capacity for realistic future growth, not just the first splice.

• Check the cable entries suit your cables, port count, diameter range, and multi-way glands where several cables share a port.

• Specify mechanical glands for controlled, repeatable entry seals where re-entry is expected.

• Confirm splitter mounting and capacity if the closure doubles as a PON splitting point.

• Confirm hinged trays and a safe minimum bend radius so the joint can be maintained without disturbing live fibres.

• Check mounting, UV rating and temperature range against where the closure will actually live.

Settling these before the closure goes in is what keeps a joint from becoming a repeat visit.

Why the joint carries the risk

The joint closure is the point where a continuous network is deliberately interrupted and then made whole again, and that makes it both essential and vulnerable. It holds the most delicate components in the network, the bare fused fibres, in the most hostile place they will ever sit, sealed against water and pressure in the ground or the weather. A weakness there does not announce itself. It shows up months later as a hard-to-trace loss, a water-damaged splice, and an engineer sent to reopen a joint that should have stayed shut.

That is the case for treating a joint closure as an engineered enclosure rather than a box. A proven IP68 seal keeps the splice environment dry for the life of the route. Well-designed trays and generous capacity keep the joint workable and ready to grow. Clean re-entry keeps every future visit safe and quick. None of it is glamorous, and all of it is the difference between a joint nobody thinks about again and one that keeps bringing an engineer back to the chamber.
