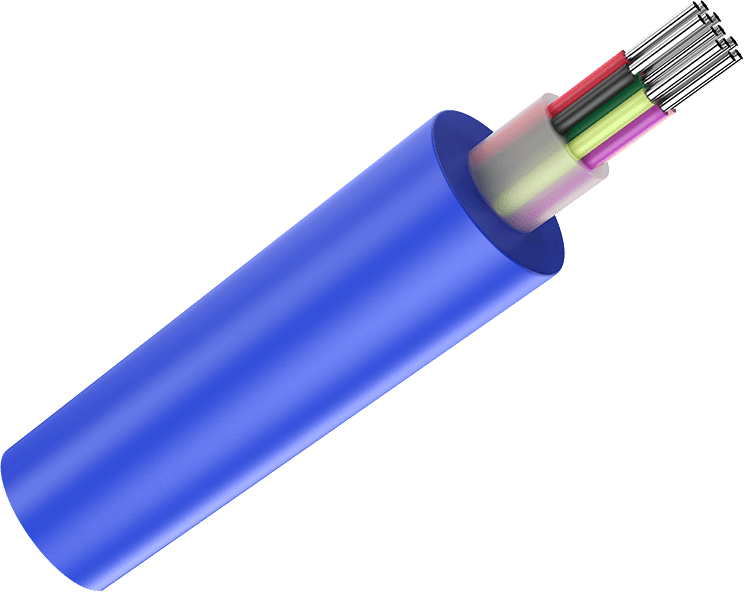

Air Blown Cable
Air Blown Cable is a fibre optic cable designed to be installed into microducts using air-blown installation technology, without the need for excavation. Because it can also be blown into existing duct and pipeline routes, it helps operators save duct space and expand networks quickly as demand grows. It is typically installed from the fibre distribution point on the street to the customer's premises using a blowing gun or a cable blowing machine. The cable core is formed by arranging the optical fibres and fillers in a cured photosensitive resin, and a special low-friction sheath is extruded over the core to give good air-blowing performance. Small and lightweight, it is easy to install with a handheld cable air-blowing machine and is compatible with industry-standard air-blowing equipment. G.657A1 fibre provides a small bending radius, making the cable suitable for indoor wiring as well as outdoor microduct routes in FTTx and FTTH networks.
Applications
FTTH drops: blowing fibre from the street distribution point into the customer premises through pre-installed microducts.
Network expansion: adding capacity by blowing new cable into spare microducts or existing pipeline routes without excavation.
Indoor wiring: routing G.657A1 fibre through buildings where a small bending radius is needed around corners and risers.
Products Benefits
Small size, light weight
Easy to install with handheld cable air blowing machine
Compatible with industry standard air blowing equipment
G.657A1 fibre with small bending radius, suitable for indoor wiring application
Low friction and resin sheath ensures good air blowing performance
Technical Specifications
Name
Data Sheet
