Medium Multi-function Joint Closure

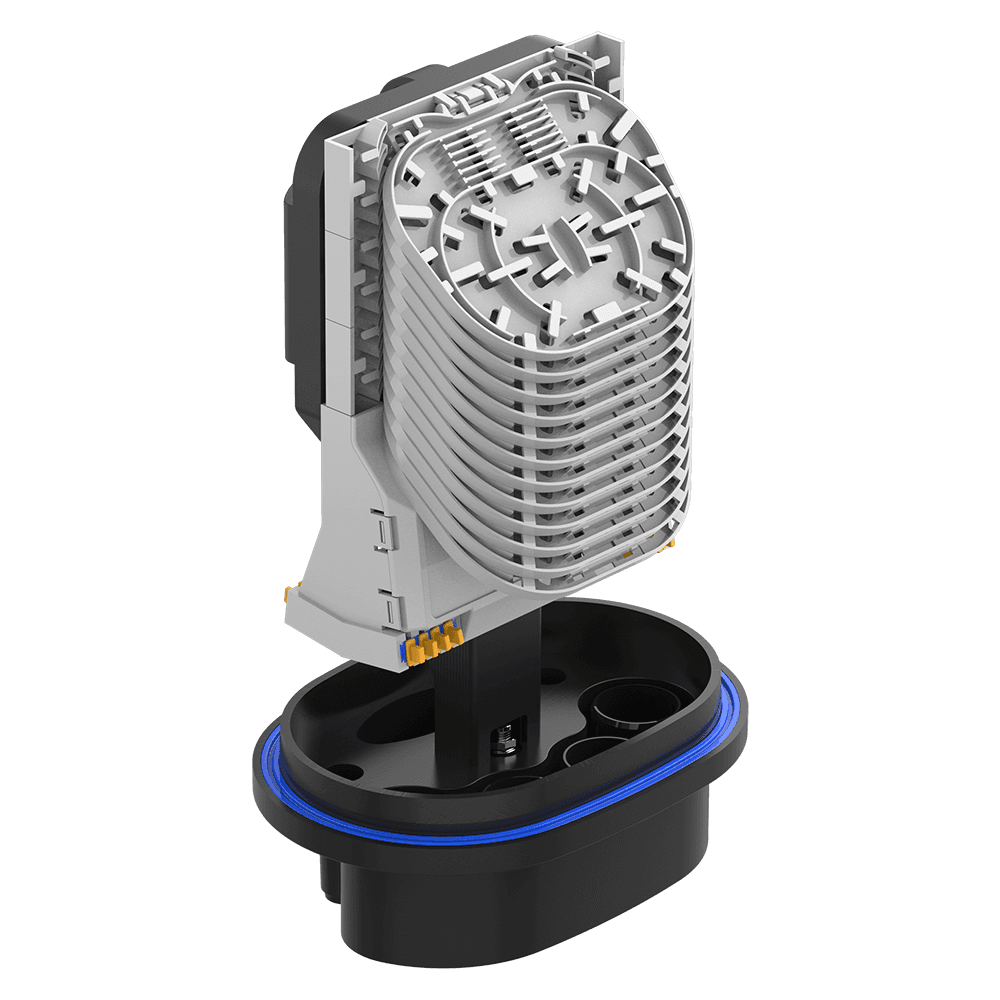

The MMJ is a fibre optic cable joint designed for applications demanding efficient and reliable cable splicing. Its versatility makes it ideal for use as a chamber joint, track joint, spur joint, or distribution joint. The compact design maximizes space utilization while accommodating a high fibre count of up to 144. Pre-installed splice trays offer efficient organization and protection for spliced fibres. Each tray holds up to 12 splices, ensuring ample capacity for complex terminations. For enhanced deployment flexibility, an optional multi-functional bracket allows for vertical or horizontal mounting on walls or poles. This bracket system facilitates efficient use of space in various installation scenarios. The MMJ features a comprehensive port configuration to accommodate diverse cable entry requirements. Four circular ports provide access for mechanical entry glands, while a dedicated oval port caters to heat shrink or additional mechanical entries. Two additional small circular ports further enhance the versatility of heat-shrink cable entry. This combination of features makes the MMJ a compelling solution for high-fibre capacity splicing applications across various network topologies.

Products Benefits

A compact closure for the splicing of optical cables.

Supplied with 12 single element trays each able to accommodate 12 splices providing a maximum capacity of 144 fibres.

An input manifold manages the tubes to a common routing channel and has the provision to mount up to four optical splitters.

Circular port cables are sealed using a mechanical sealing gland. The gland can be assembled onto the cable away from the joint and is then simply plugged into the base.

Integrated loop storage basket for mid-span applications.

Products Benefits

A compact closure for the splicing of optical cables.

Supplied with 12 single element trays each able to accommodate 12 splices providing a maximum capacity of 144 fibres.

An input manifold manages the tubes to a common routing channel and has the provision to mount up to four optical splitters.

Circular port cables are sealed using a mechanical sealing gland. The gland can be assembled onto the cable away from the joint and is then simply plugged into the base.

Integrated loop storage basket for mid-span applications.

Products Benefits

A compact closure for the splicing of optical cables.

Supplied with 12 single element trays each able to accommodate 12 splices providing a maximum capacity of 144 fibres.

An input manifold manages the tubes to a common routing channel and has the provision to mount up to four optical splitters.

Circular port cables are sealed using a mechanical sealing gland. The gland can be assembled onto the cable away from the joint and is then simply plugged into the base.

Integrated loop storage basket for mid-span applications.

Technical Specifications
Technical Specifications
Technical Specifications

Name

Data Sheet

Medium Multi-function Joint Closure
